Features
Spray Angle
52°-120°
Spray Pattern
Hollow cone spray, spray area into a ring.
Drops
Small to medium, evenly distributed, and have a wide range of pressure and flow.
Material
BRASS/SS
Features
Removable cap, the same interface size can be replaced with each other.
Side projections are smaller when mounted on a tee or spray rod.
Cleaning
Gas/Air/Mechanical Device/Coating Pretreatment, etc.
Spread
Aeration/Humidification, etc.
Cooling Down
Gas/Air Conditioning/Roof/Machinery/Food/Warm Water, etc.

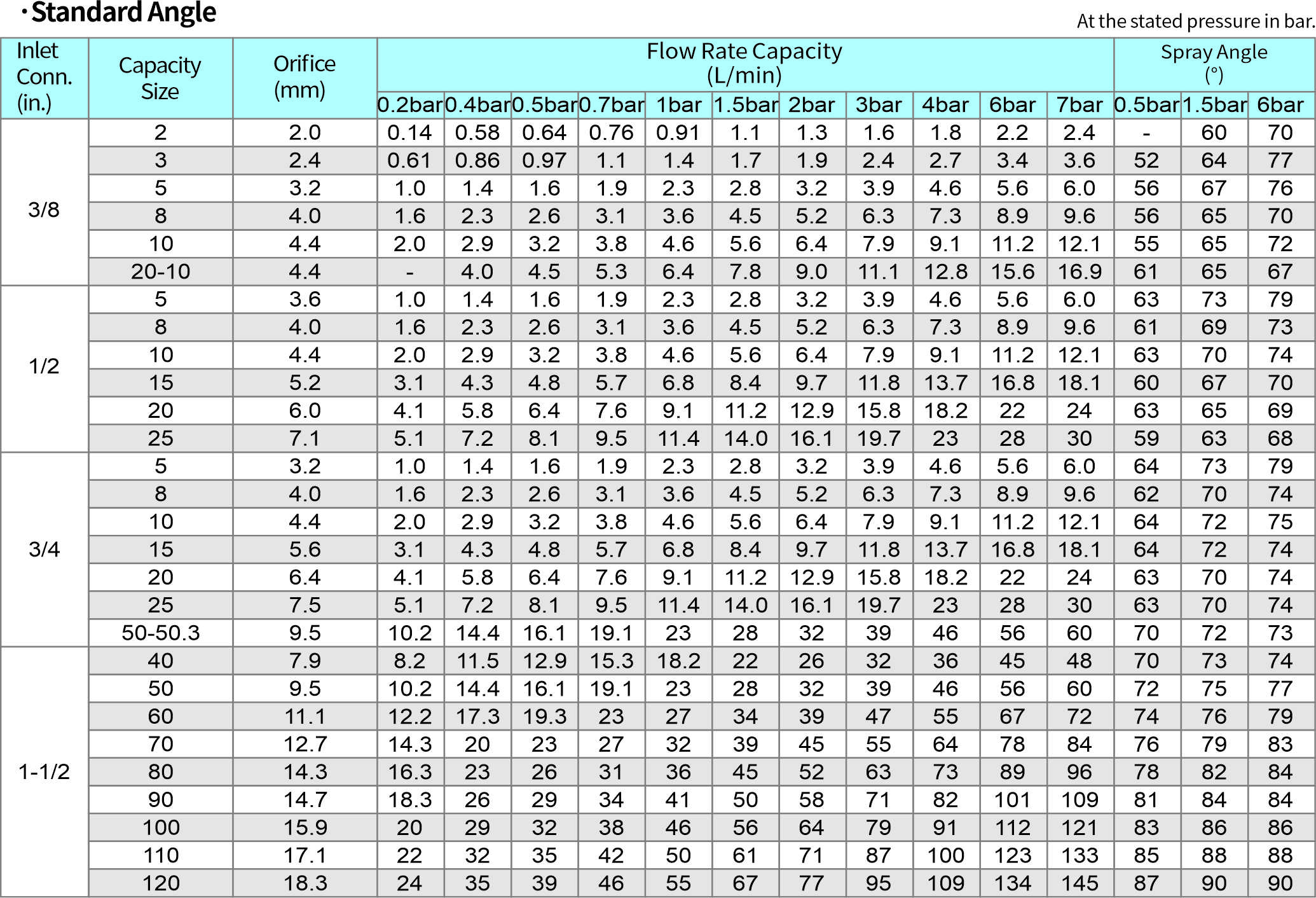

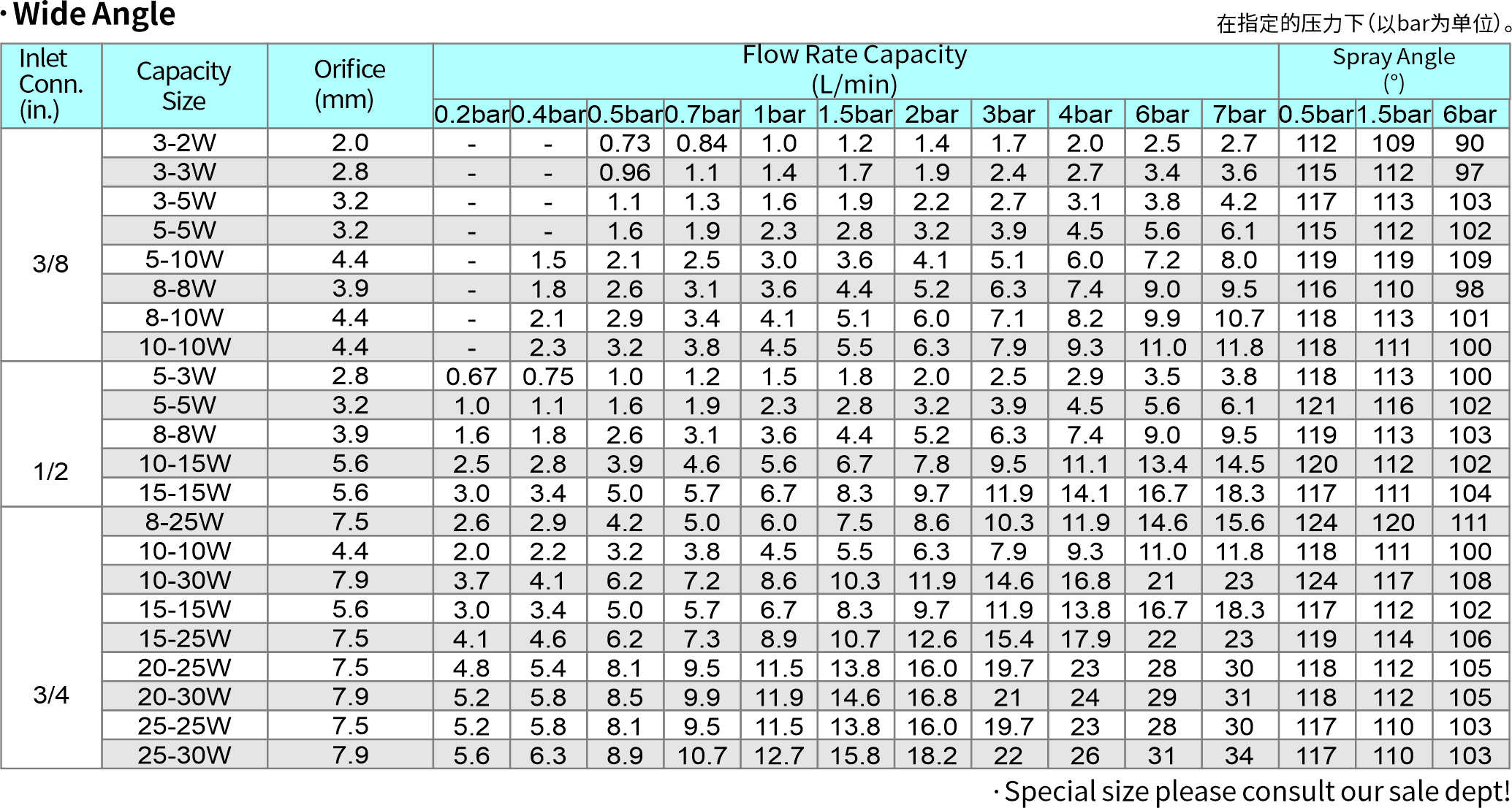

Product parameters
| Inlet Conn. | 3/8，1/2，3/4,1-1/2External | Thread | BSPT/NPT | Flow Rate | 0.14～145L/min |
| Spray Angle | 52°～124° | Material | S303、S304 、S316 | Structure | Made up of nozzle body and nozzle button cover |
