A Internal Thread Type
Features
Spray Angle
51°-120°
Spray Pattern
Hollow cone spray, spray area into a ring.
Drops
Small to medium, evenly distributed, and have a wide range of pressure and flow.
Material
BRASS/SS/PP/PVC/PTFE
Features
Large/barrier-free flow channels minimize clogging.
The overall casting has a finishing finish with a polished treatment and a cyclone chamber design.
High quality atomization of liquid can also be carried out at lower pressure, which can quickly transfer heat and produce good airborne droplet impact effect.
Cleaning
Gas/Air/Mechanical Device/Coating Pretreatment, etc.
Spread
Aeration/Humidification, etc.
Cooling Down
Gas/Air Conditioning/Roof/Machinery/Food/Warm Water, etc.

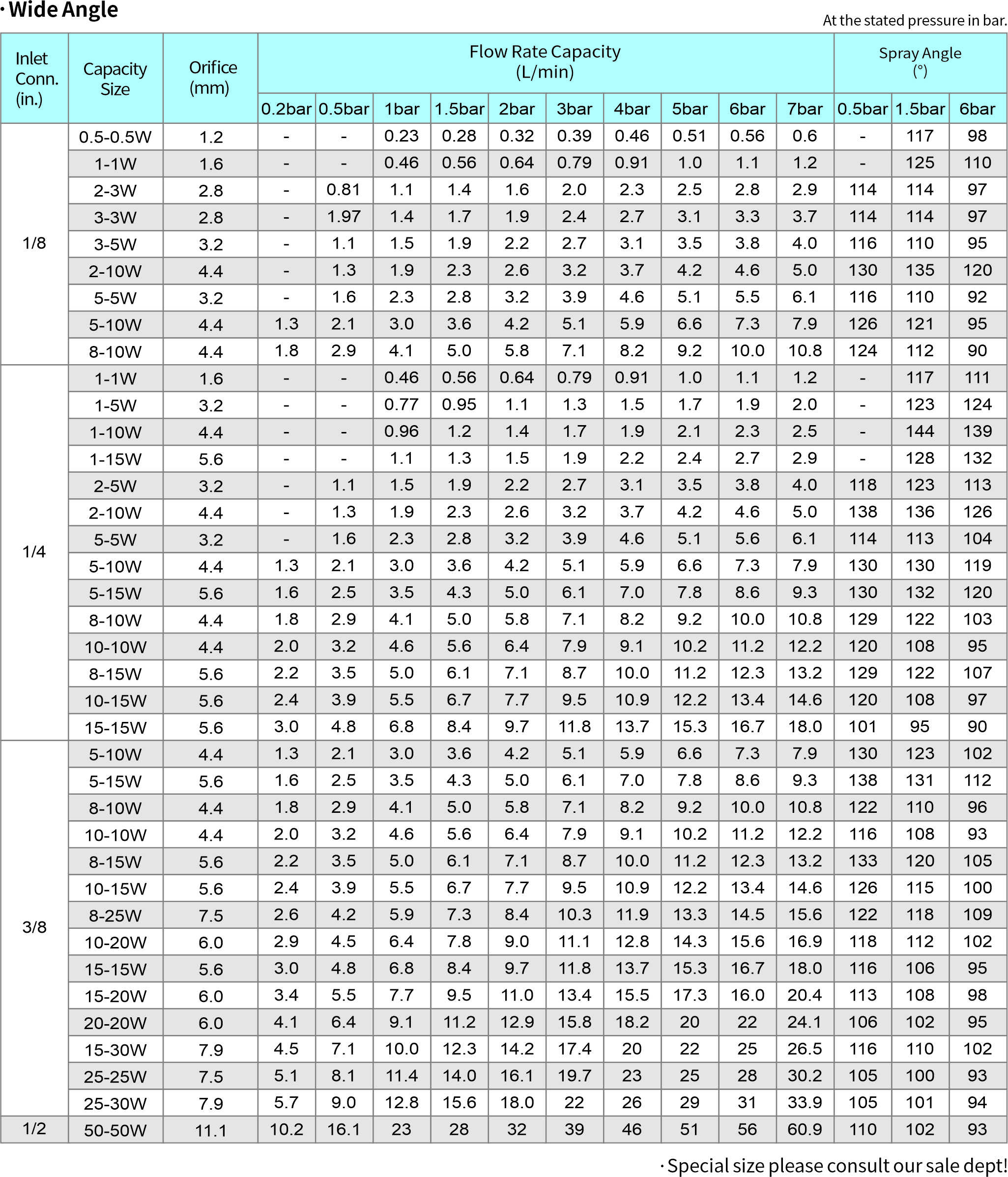

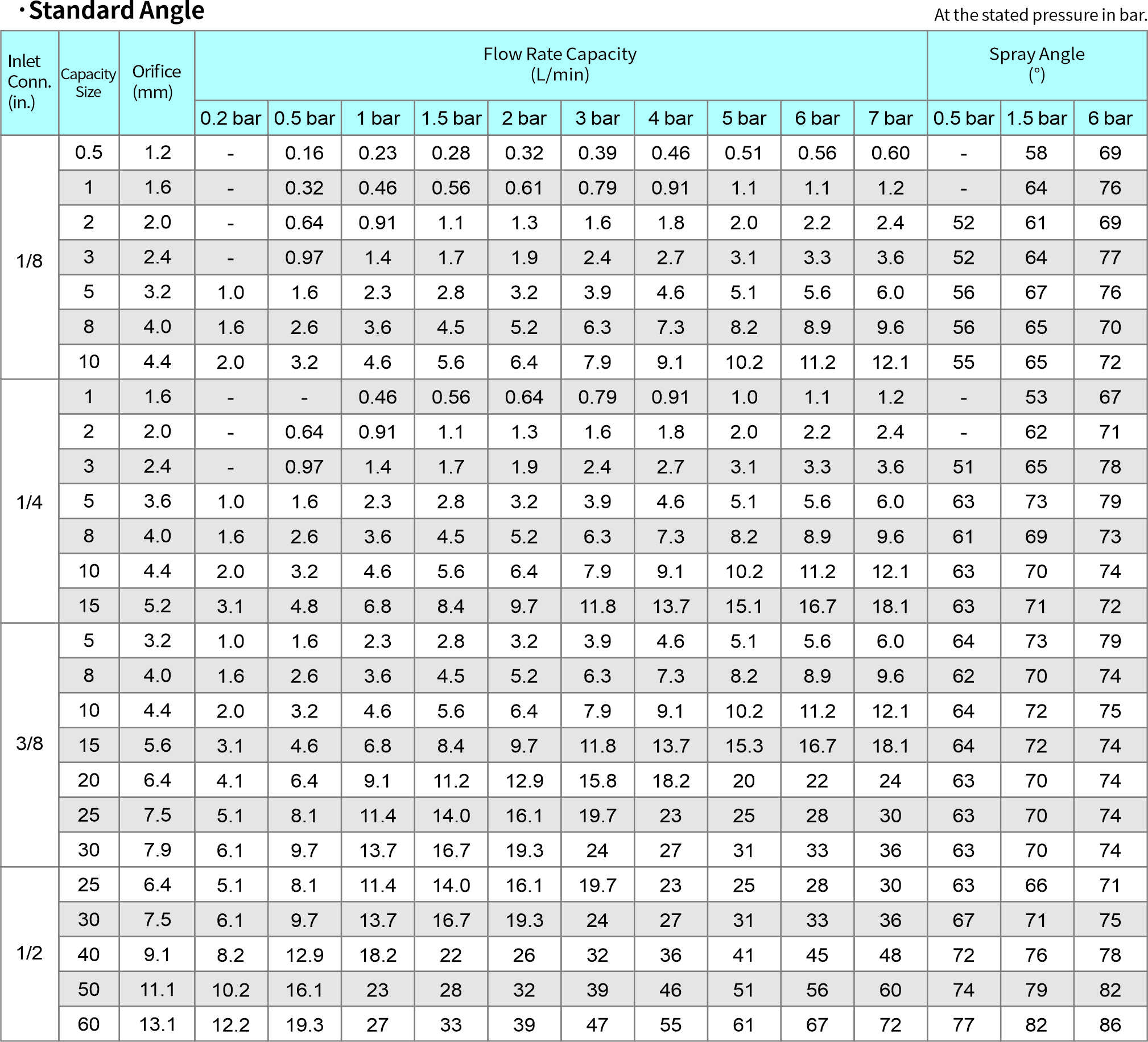

Product parameters
| Inlet Conn. | 1/8,1/4,3/8,1/2 | Thread | BSPT/NPT | Flow Rate | 0.16～60.9L/min |
Spray Angle | 51°-120° | Material | S303/S304 /S316/PP/PVC/PTEF | Structure | Made up of nozzle body and nozzle button cover |
