KQWHVVRA


Features
Spray Angle
15°- 80°
Spray Pattern
Flat Fan spray.
Drops
Above 50μm.
Features
The average particle size of microfog was 50μm, the thickness was equal, the flow range was adjusted greatly, and the Angle change was small.
Cleaning
Liquid Crystal/Printed Substrate/Steel Plate [Steel Industry].
Surface Treatment Process
Steel Plate Precision Cleaning, Roller Cleaning

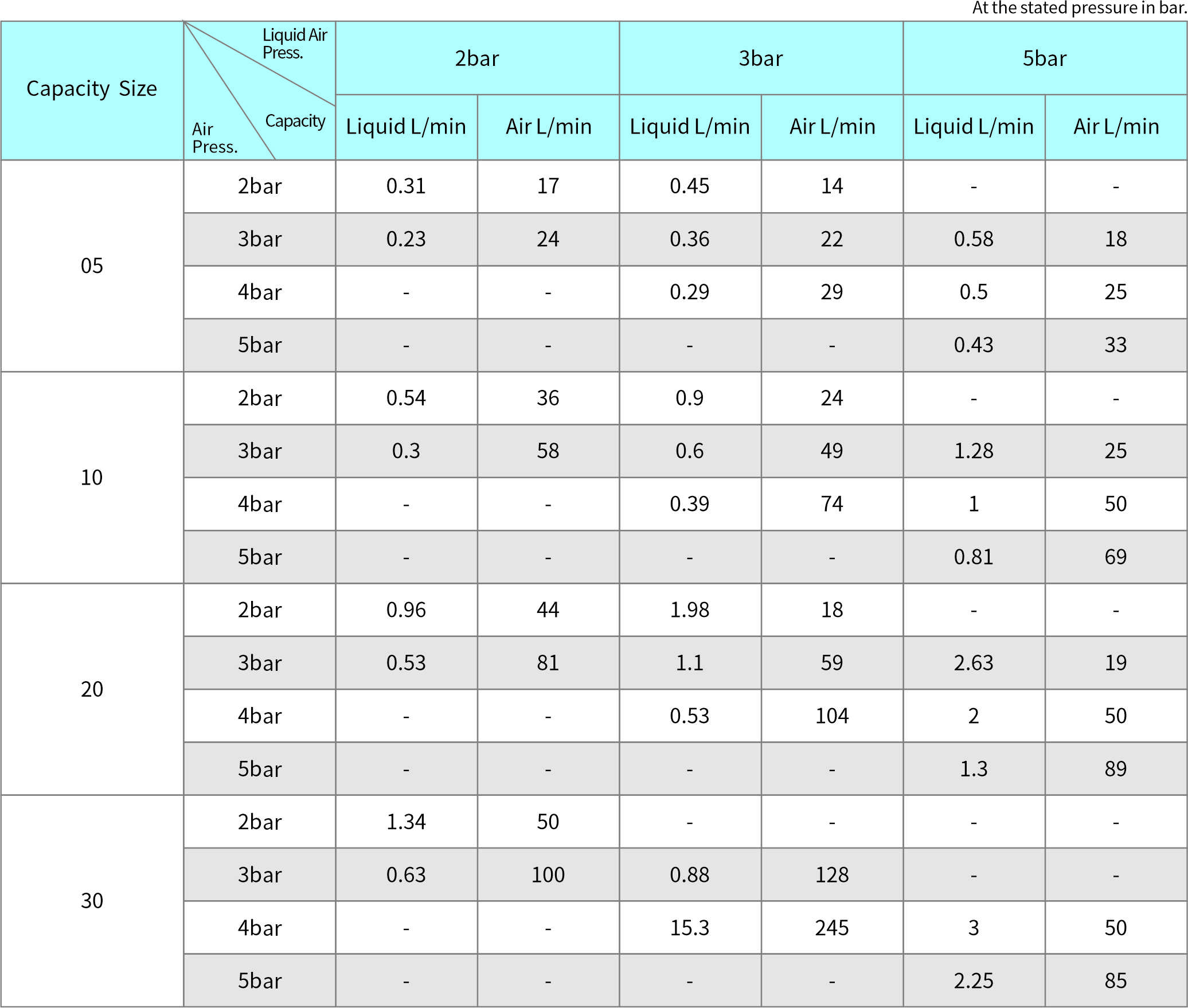

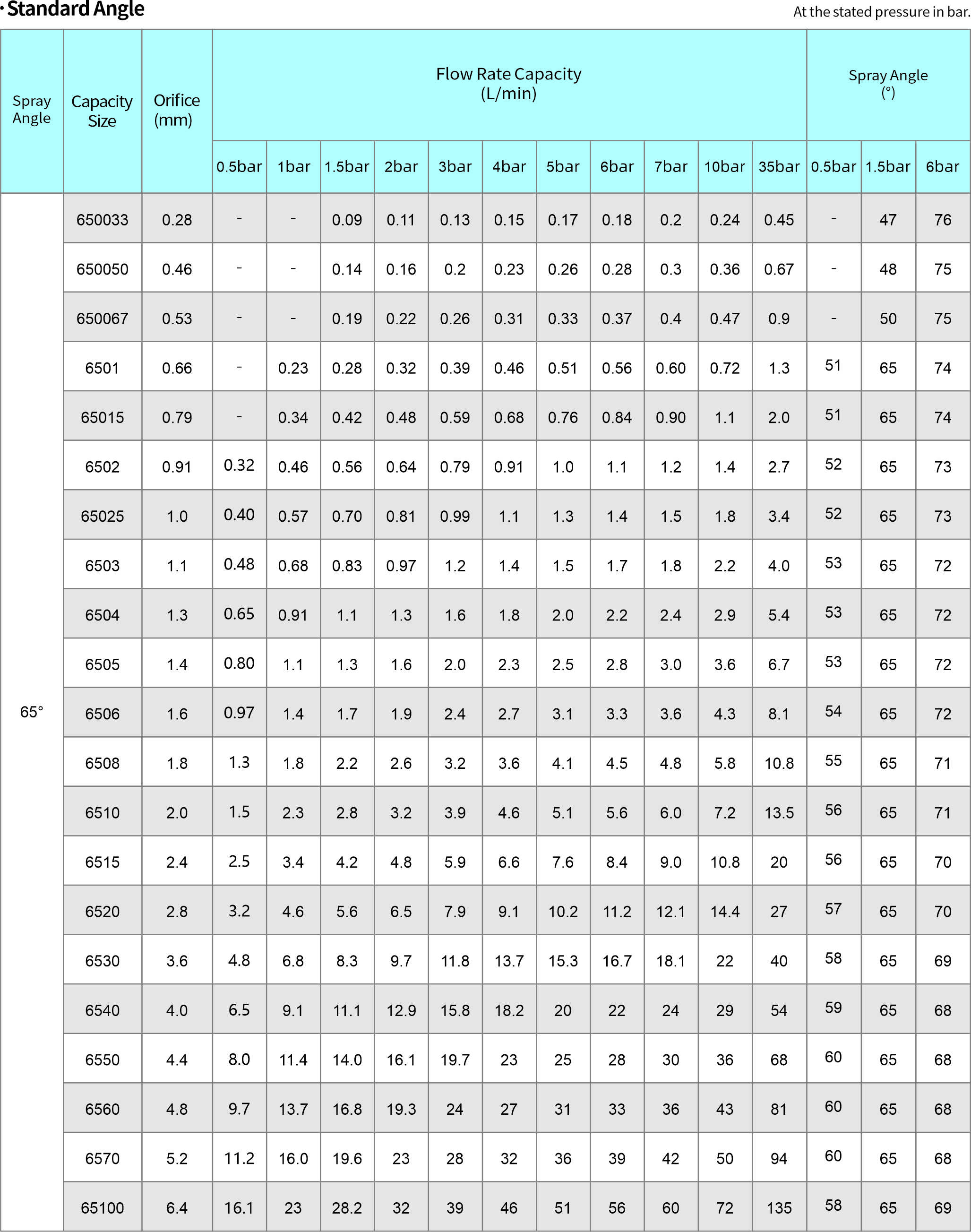

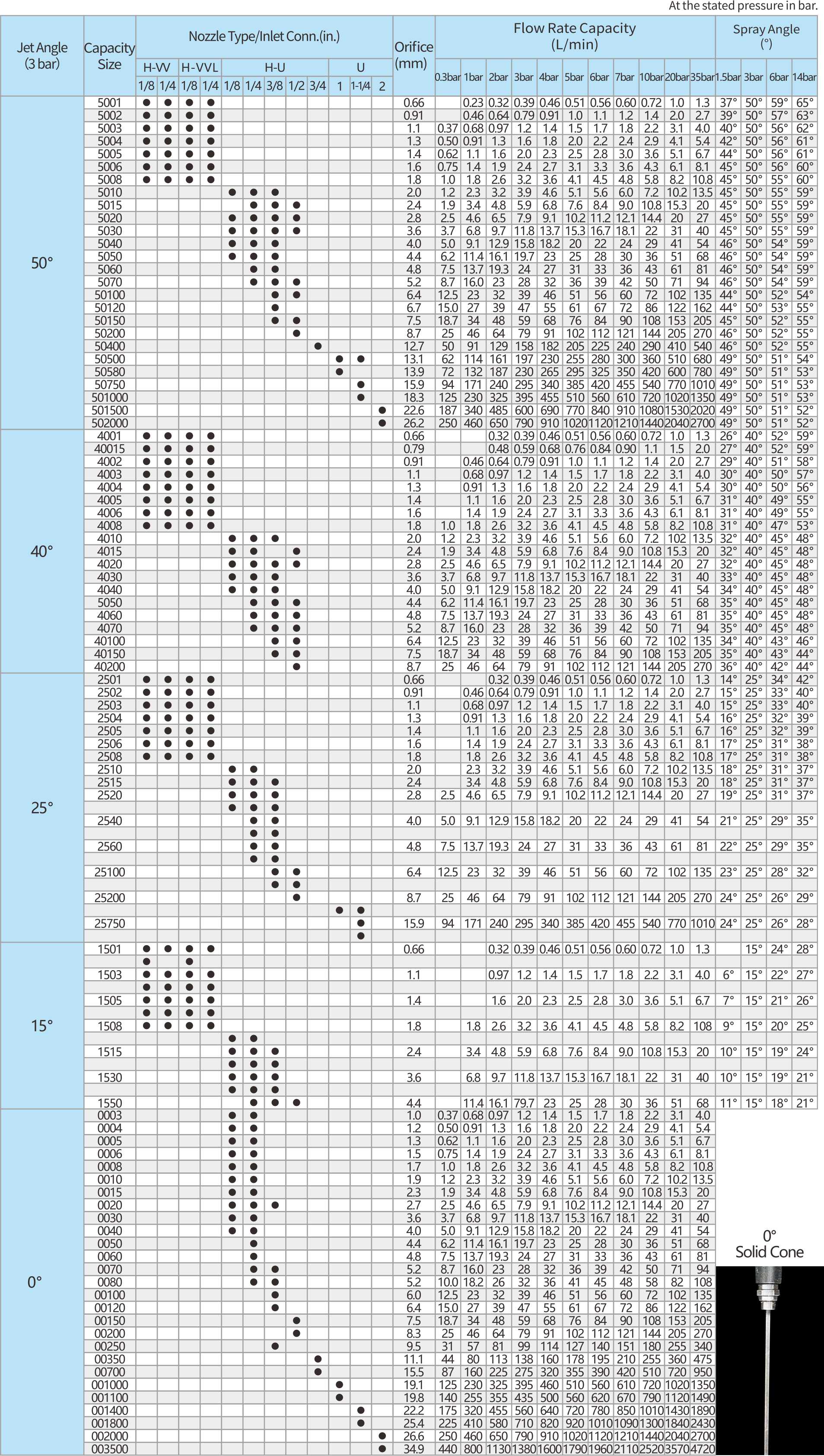

Product parameters
Inlet Conn. | 1/8 | Thread | BSPT/NPT | Particle Size | 10-20μm |
Spray Angle | 15°-80° | Material | S303、S304 、S316 | Structure | It is composed of a nozzle, a cap, a mixing connector, a liquid pipe and other components. |
